Hardware

Here below a description of the WIC generic crates built with normal and fail-safe modules from the S7-300 series of SIEMENS

The complete list of crates (40 variants) together with the module references are available under the menu: Asset management

For quality control purpose, an automatic tester was built to validate the correct cabling of a crate upon reception, capable of testing any crate variants. Automatic Tester User Manual

Image	Component	Description

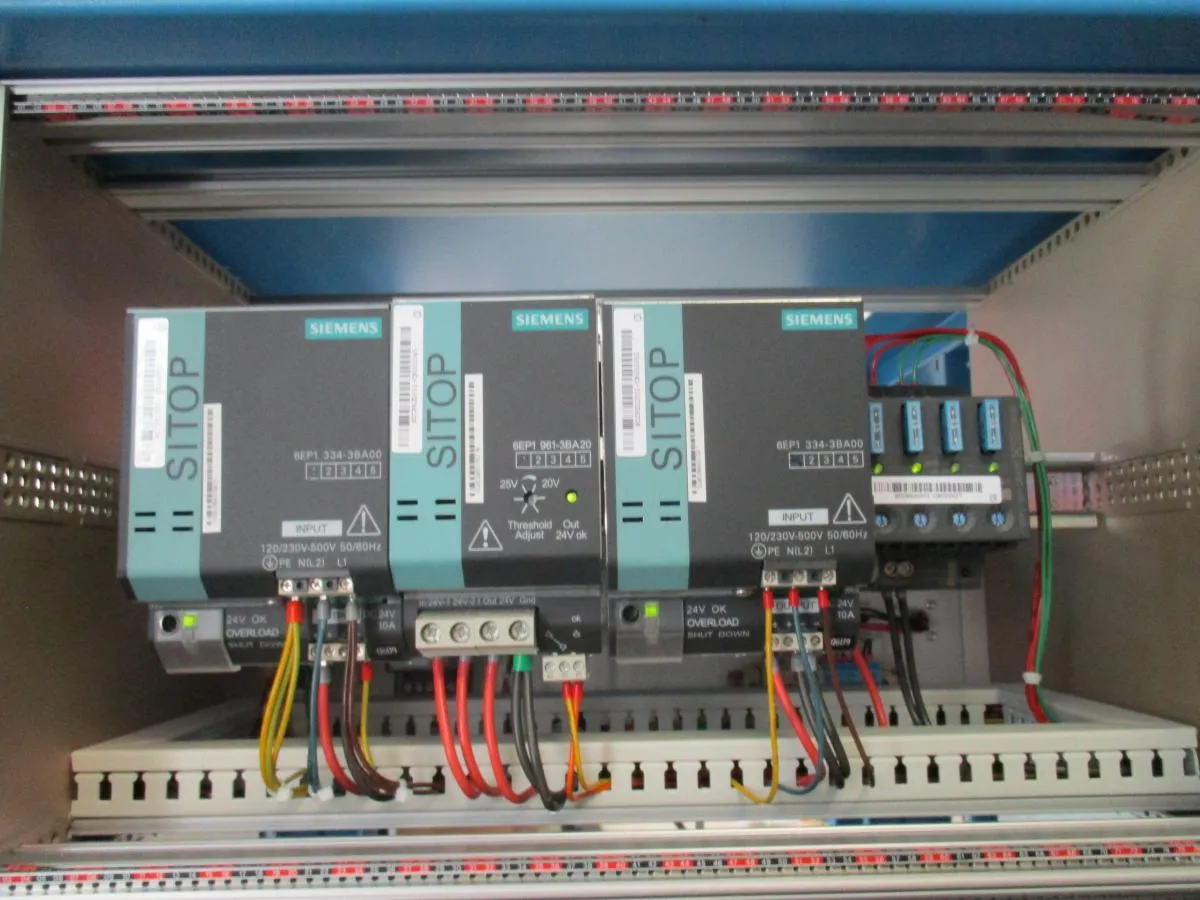

	Power supply crate	SITOP REDUNDANT POWER SUPPLIES: Ensures redundant voltage supply (24V) to all PLC crates

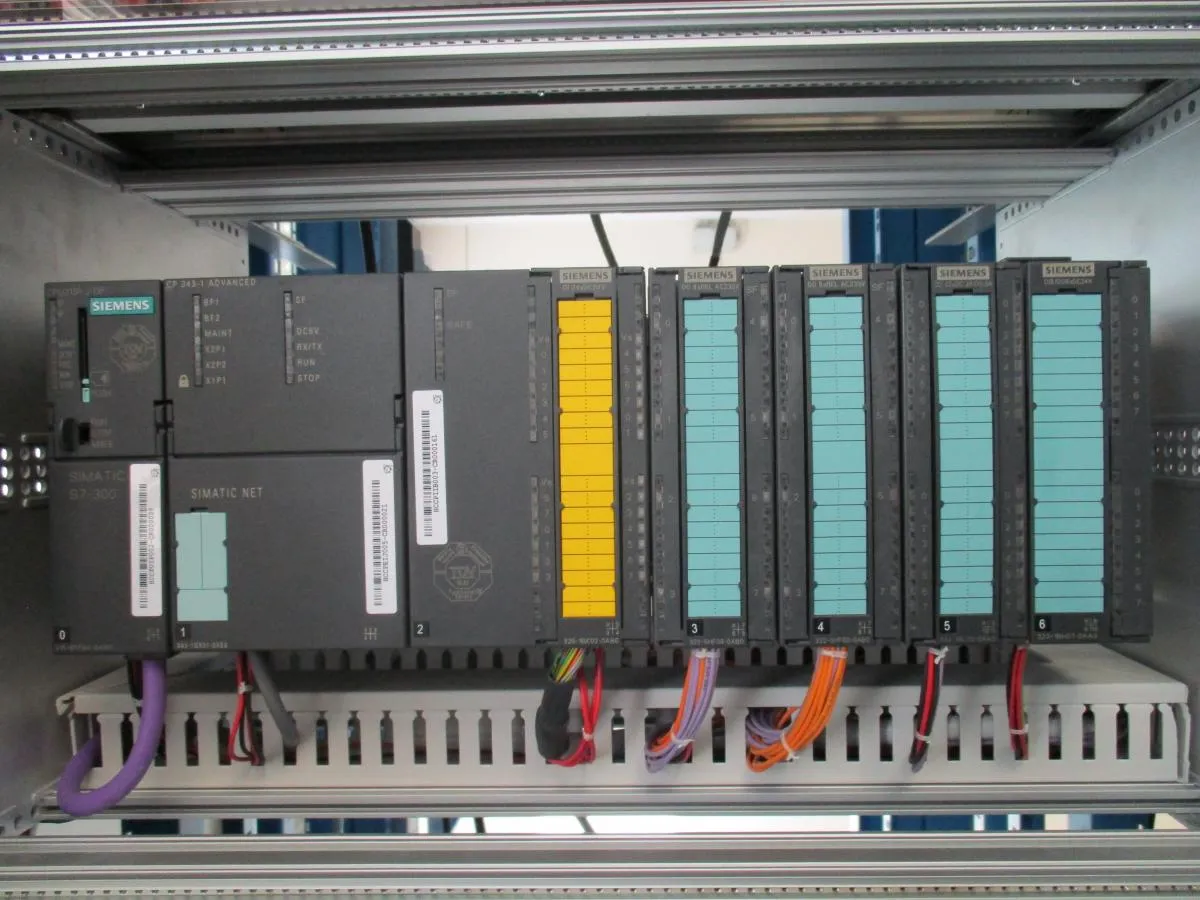

	Master crate	SIMATIC S7-300 CPU 315F-2DP: In charge of running the core program of the WIC. CP 343-1: Ethernet coupler. DIGITAL I/O: 2x24DI and 2x32DO modules for the connection to the magnets magnets + 1x32DO module for the connection to the Beam Interlock System (BIS)

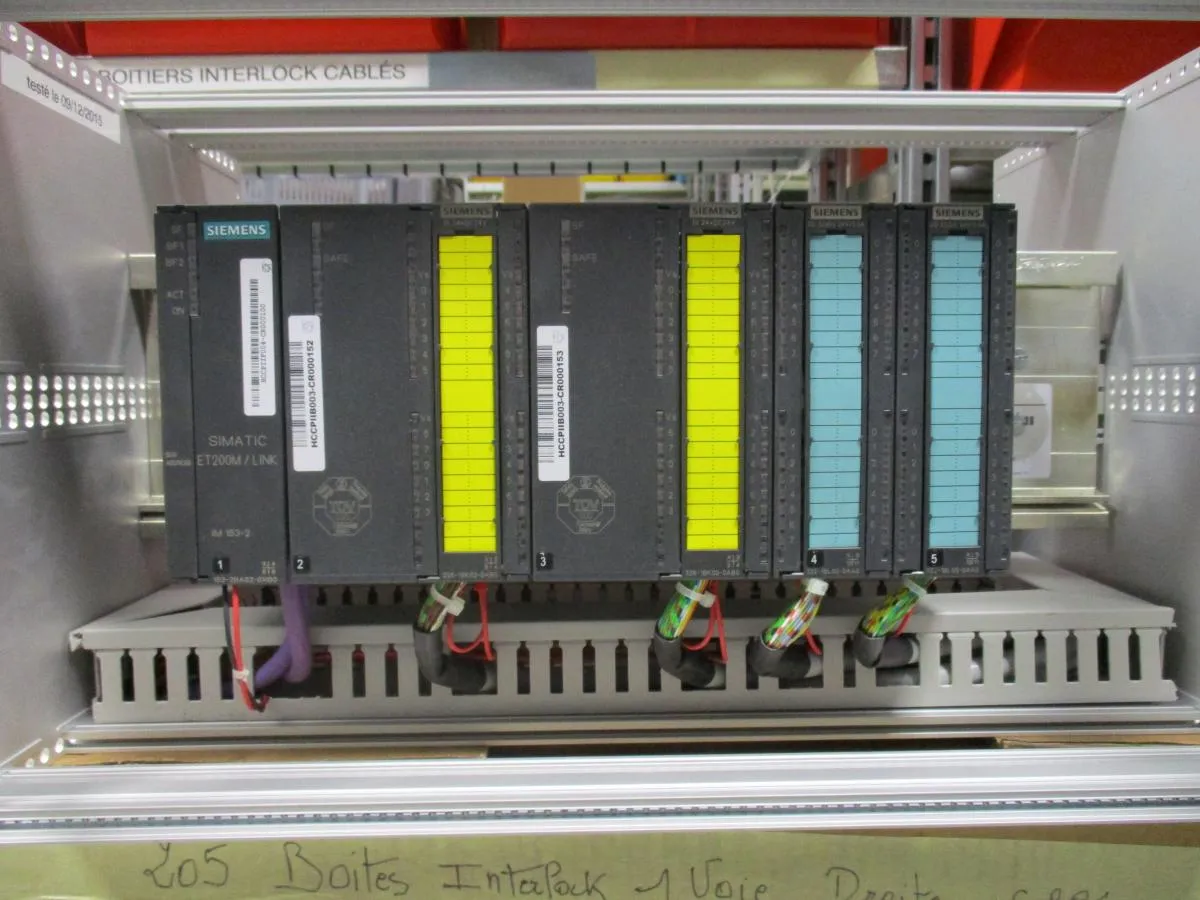

	Magnet crate	PROFIBUS Coupler ET200M DIGITAL I/O: 2x24DI and 2x32DO modules for the connection to the magnets

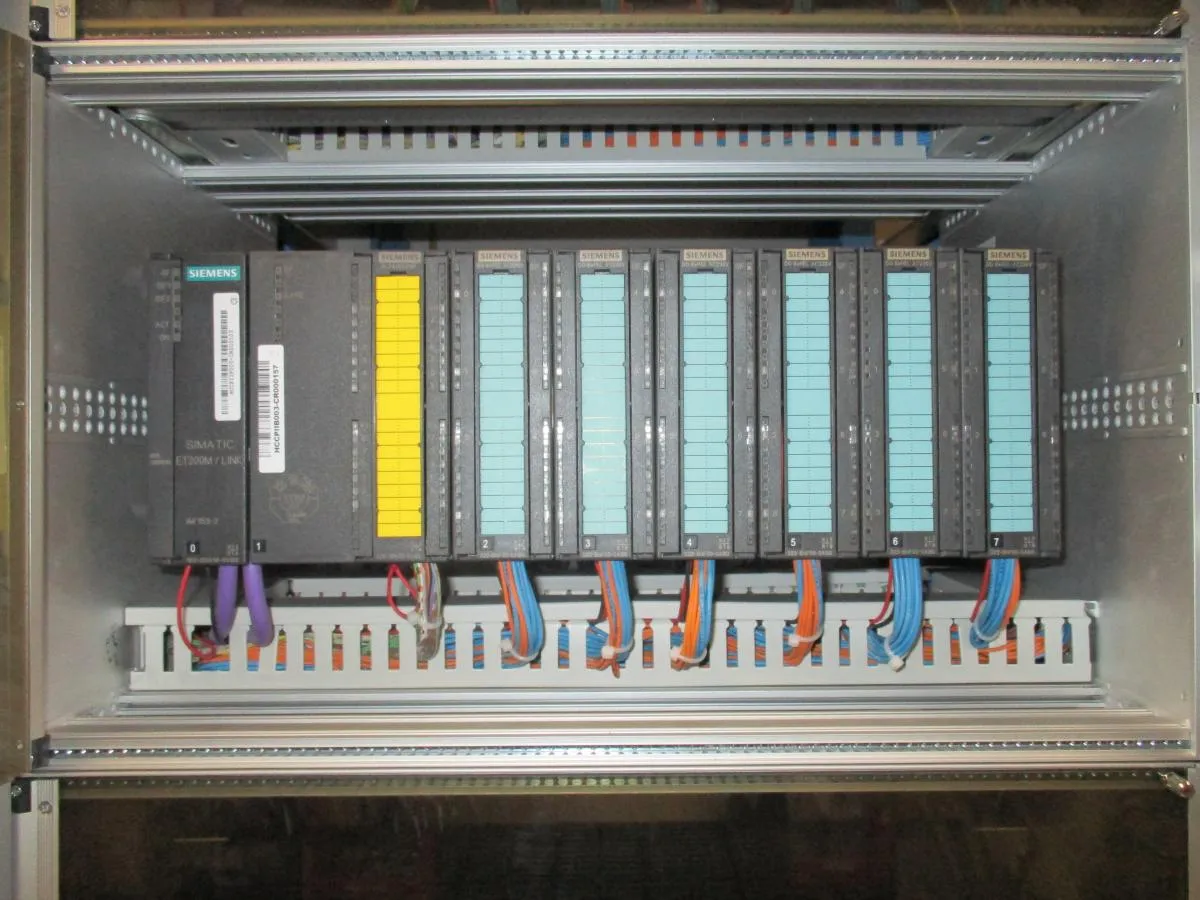

	Power converter (PC) crate	PROFIBUS Coupler ET200M DIGITAL I/O: 1x24DI and 6x8DO relay modules for the connection to the power converters

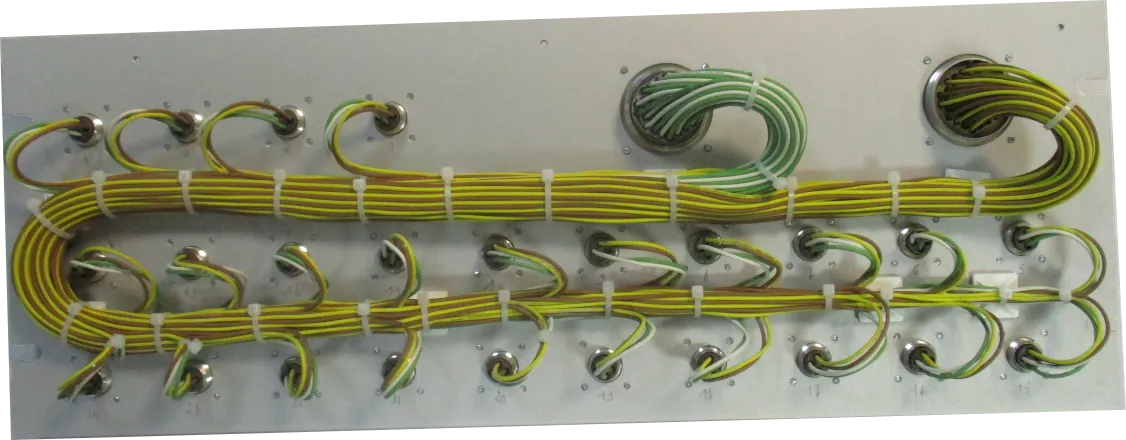

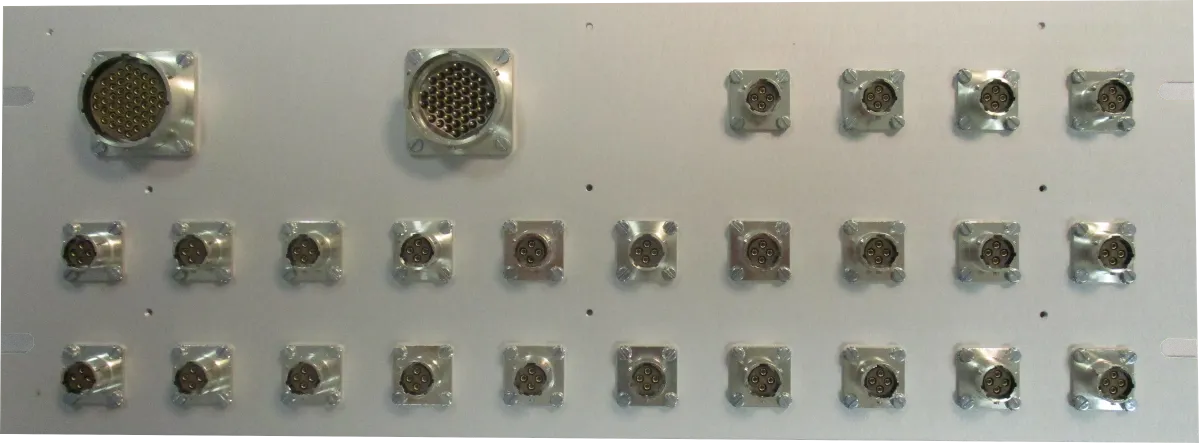

	Patch panel	PATCH PANEL FOR ONE CHANNEL INTERLOCK BOX

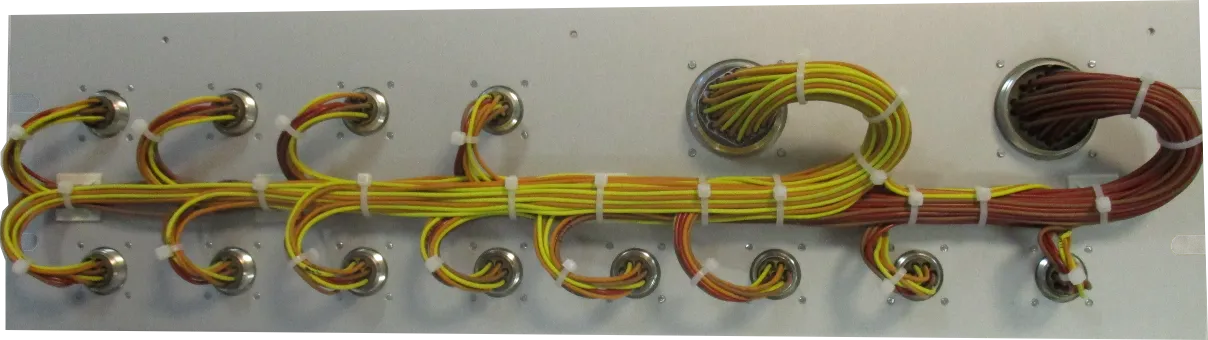

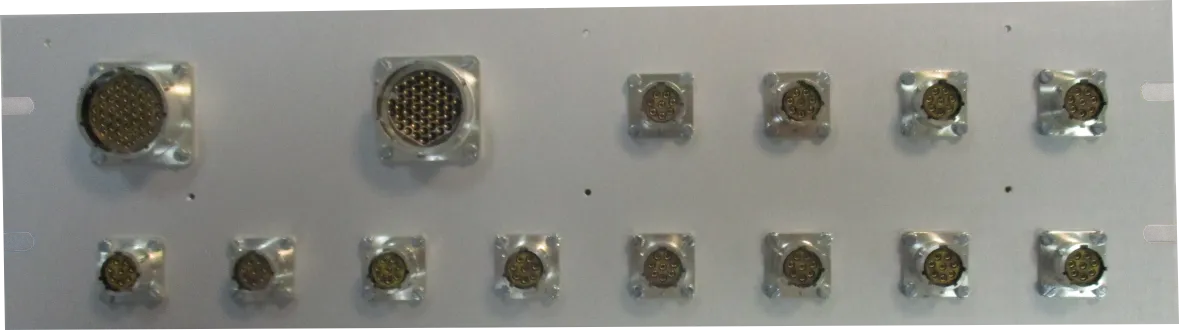

	Patch panel	PATCH PANEL FOR TWO CHANNELS INTERLOCK BOX

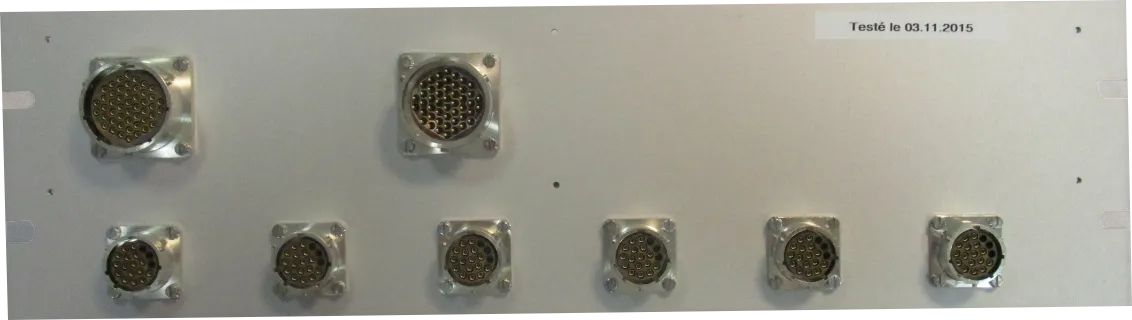

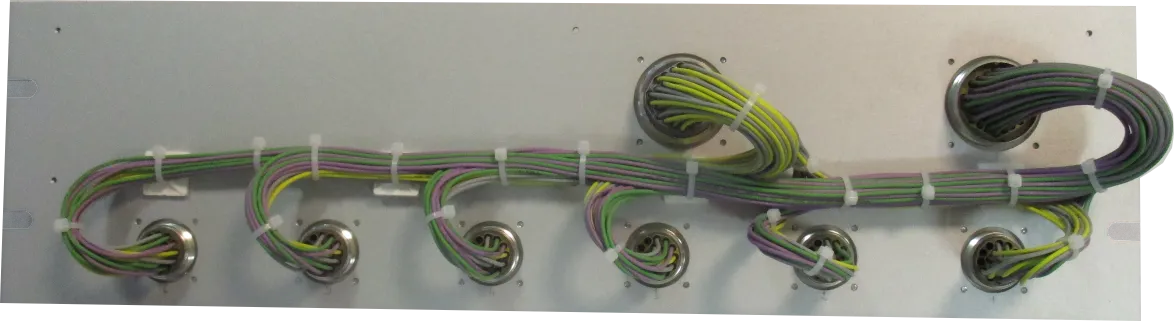

	Patch panel	PATCH PANEL FOR FOUR CHANNELS INTERLOCK BOX

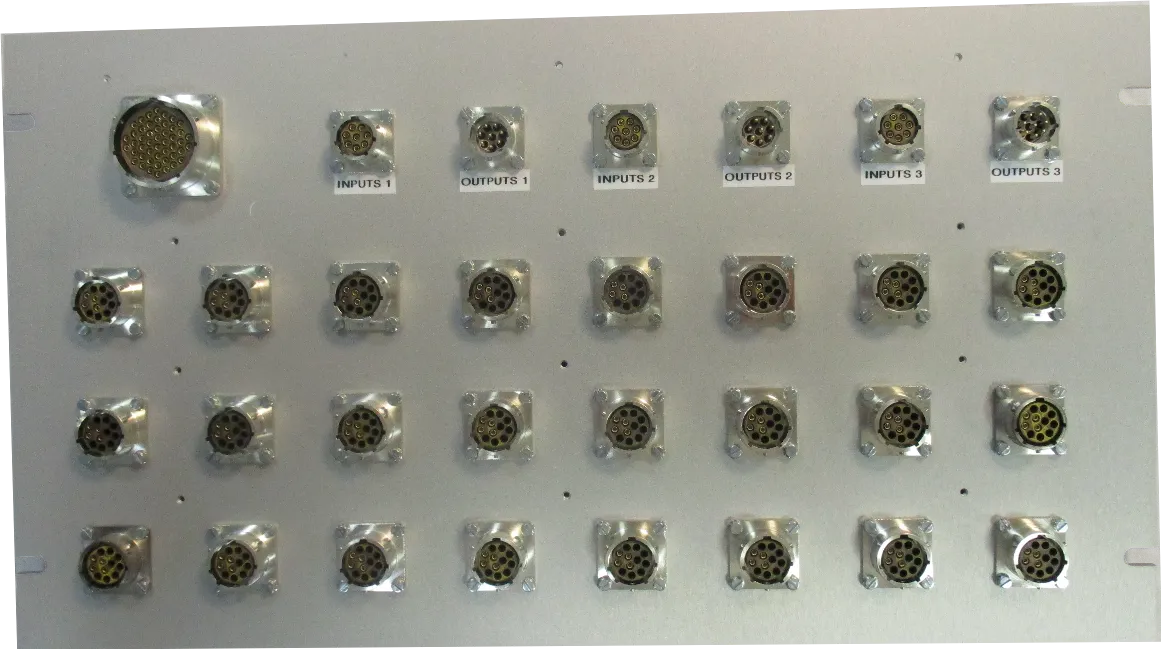

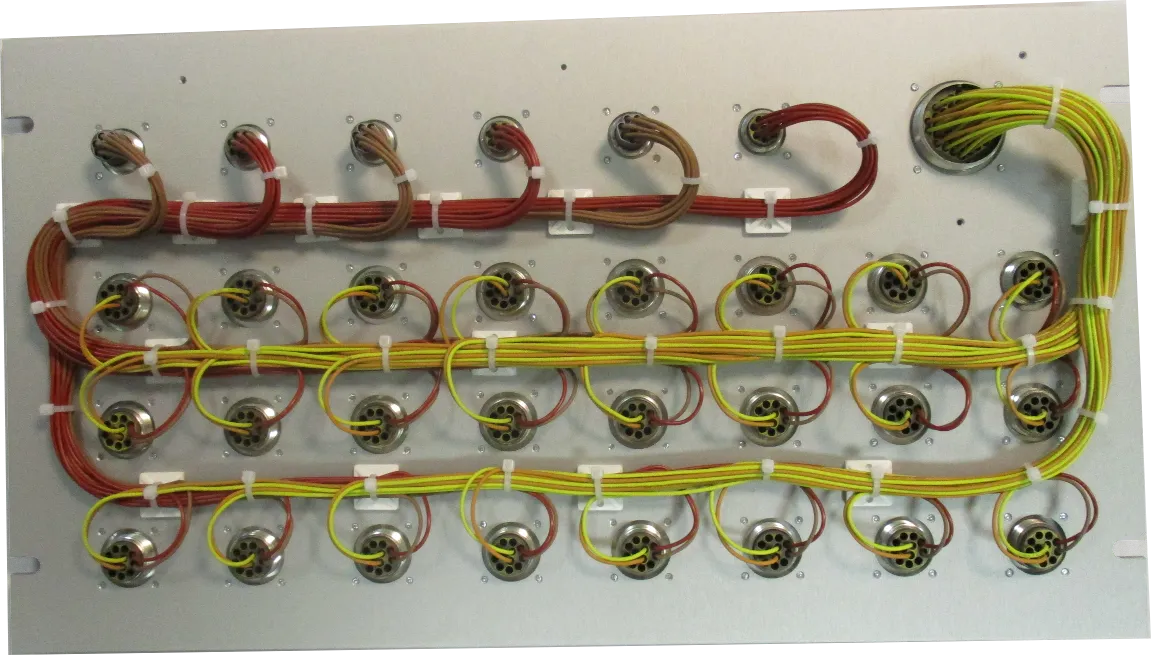

	Patch panel	PATCH PANEL FOR POWER CONVERTER (LHC convention)

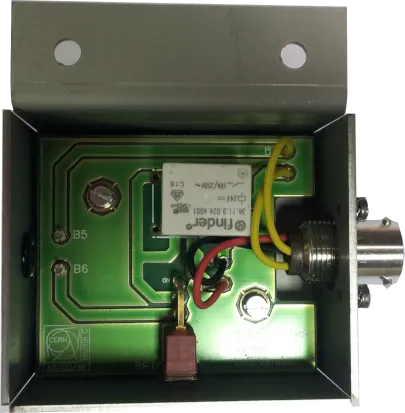

	Interlock box	ONE CHANNEL VERSION

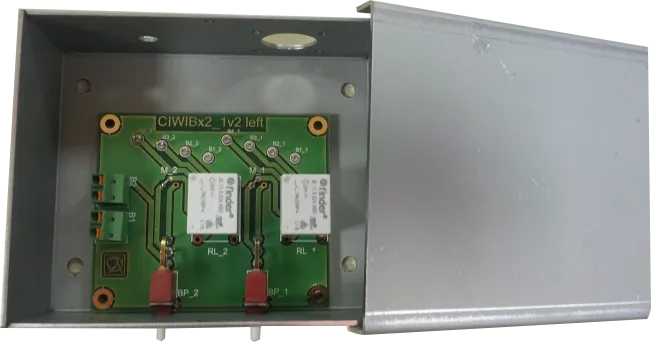

	Interlock box	TWO CHANNELS VERSION

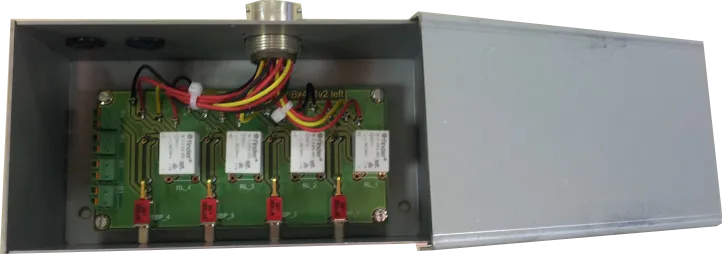

	Interlock box	FOUR CHANNELS VERSION

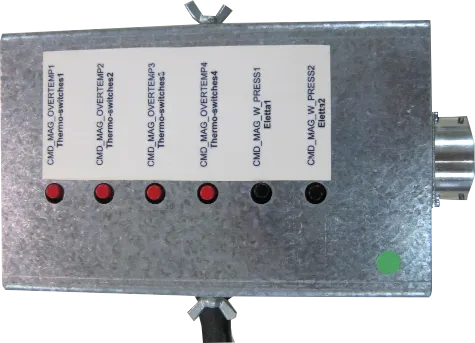

	Interlock box	SIX CHANNELS VERSION

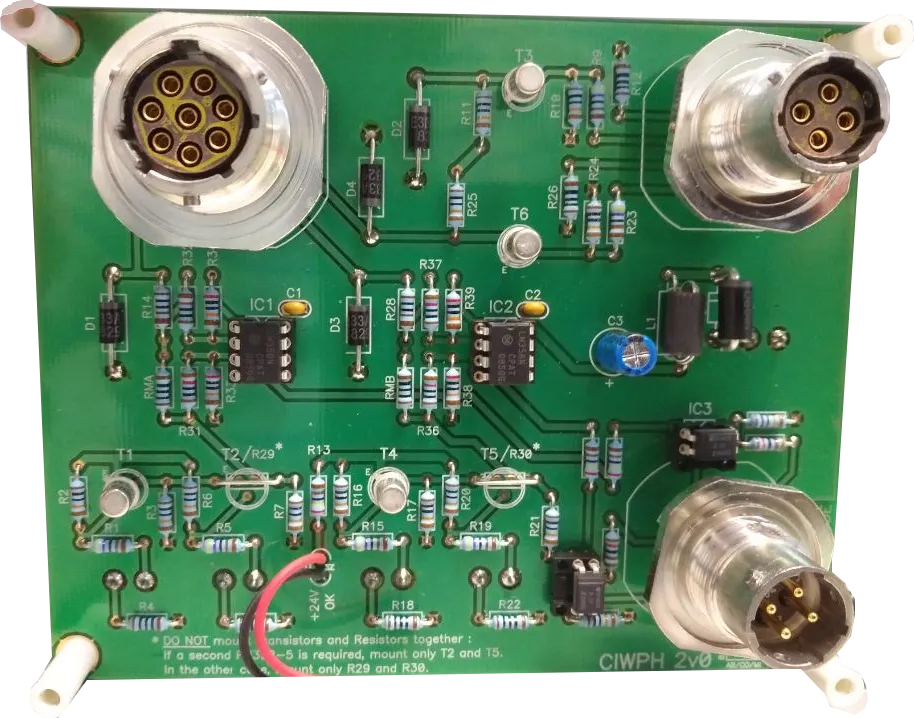

	PCB	CIWPH: Printed Circuit Board to connect up to 2x Fast Boolean processor modules (FM352-5)

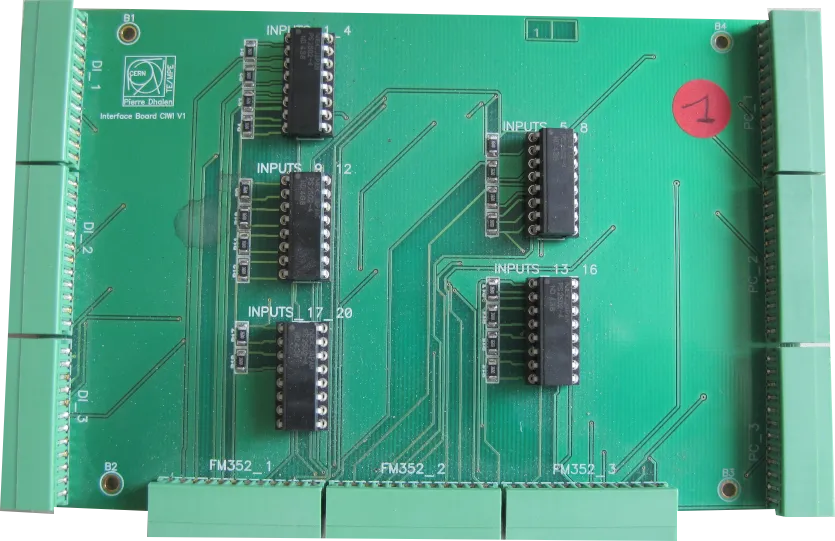

	PCB	CIWI: Printed Circuit Board to duplicate signals using optocouplers to provide galvanic insulation
